NextCom 50G 96-Channel Athermal AWG specification
NextCom’s Athermal AWG series products take silica-on-silicon planar technology and it is built with high performance and reliability, which can be used in general DWDM systems. Based on the athermal design and packing, it is totally passive product which does not require any electrical power or temperature control. For 50G AAWG Mux/Demux, it supports up to 96-CH based on a single chipset. Customized wavelengths, package and fiber options are also available.
Specification:
Absolute Maximum Ratings
| Parameters | Conditions | Specifications | Unit
单位 |
|
| Min. | Max. | |||
| Operating Temperature | Non-Condensing Environment | -5 | 65 | oC |
| Operating Humidity | 5 | 85 | %RH | |
| Storage Temperature | Device Not Powered on Heater Element | -40 | 85 | oC |
| Storage Humidity | Device Not Powered on Heater Element | 5 | 95 | %RH |
Optical Specifications
| Parameters | Condition | Specs | Units | ||
| MIN | Typ. | MAX | |||
| Number of Channels | 96 | 96 | CH | ||
| Number Channel Spacing | 50GHz | 50 | GHz | ||
| Center Wavelength | ITU frequency, measured in vacuum. | C-band | nm | ||
| Clear Channel Passband | Centered at each ITU channel frequency | ±6.25 | GHz | ||
| Wavelength Stability | Maximum range of the wavelength error of all channels and temperatures in average polarization. | ±0.05 | nm | ||
| -1dB-1dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each Channel. | 0.20 | nm | ||
| -3dB-3dB Channel Bandwidth | Clear channel bandwidth defined by passband shape. For each channel. | 0.28 | nm | ||
| ITU
Optical Insertion Loss at ITU grid |
Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations with connectors. | 12.0 | dB | ||
| Adjacent Channel Isolation | Ratio of peak transmission to the maximum transmission over both adjacent ITU wavelengths | 25 | dB | ||
| Non-Adjacent, Channel Isolation | Ratio of peak transmission in channel
passband to the maximum transmission over all non-adjacent ITU wavelength |
30 | dB | ||
| Total Crosstalk | Ratio of power in channel to power in all other ITU wavelength | 20 | dB | ||
| Insertion Loss Uniformity | The difference between the maximum and minimum of passband across all channels | 0.8 | 1.3 | dB | |
| Directivity(Mux Only) | Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n | 40 | dB | ||
| Optical Return loss | Input & output ports | 45 | dB | ||
| Polarization Dependent Loss in Clear Channel Band | Worst-case value measured in ± 20GHz around ITU wavelength for each port. | 0.3 | 0.5 | dB | |
| Polarization Mode Dispersion | Maximum differential group delay within reference ITU wavelength | 1.0 | ps | ||
| Chromatic Dispersion | Maximum change rate of group delay versus wavelength within reference ITU wavelength | -20 | +20 | ps/nm | |
| Maximum Input Optical Power | Maximum continuous optical power | 500 | mW | ||

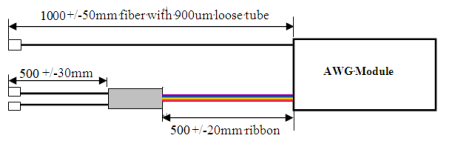

Mechanical Dimensions, Fiber Coding and Connector Specifications
| Dimensions | 120 x 70 x 10.5 | mm | |||||||||||||
| Fiber Type | Common SMF-28e fiber with 900um loose tube/ SMF-28e 900um Channels: SMF-28e Ribbons | ||||||||||||||
| Fiber Length | Common | 1000mm ± 50mm with 900um loose tube/1000mm ± 50mm 900um | |||||||||||||
| Channels | Ribbon 500mm± 20 mm and Fan out 500mm± 30mm with 900um loose tube
500mm± 20 mm,500mm± 30mm |
||||||||||||||
| Common | Color | white | |||||||||||||
| Ribbon Identification | Label with ribbon number will be placed close to end-points | ||||||||||||||
| Connector Options | Common | LC/UPC | |||||||||||||
| Channels | LC/UPC | ||||||||||||||
| Fiber Identification in Ribbon | 1 | Yellow | 2 | Orange | 3 | Green | 4 | Brown | 5 | Grey | 6 | White | |||
| 7 | Red | 8 | Black | 9 | Yellow | 10 | Purple | 11 | Pink | 12 | Aqua | ||||
| *Customized design available
|
|||||||||||||||
Features:
Low Insertion Loss;
Wide pass band;
High channel;
High stability and reliability.
Low Insertion Loss;
Wide pass band;
Applications:
WDM Network;
Telecommunication;
Access Network.
Packing for Patch Cord:
Packaging Detail: 1 piece one bag with ziplock bag or PE bag.
Delivery Detail: 4-7 business days reach after we confirm the orders.
Product Warranty :
At Nextcom, we are committed to providing you with quality products, and that is backed up by our 1 Year product warranty.
